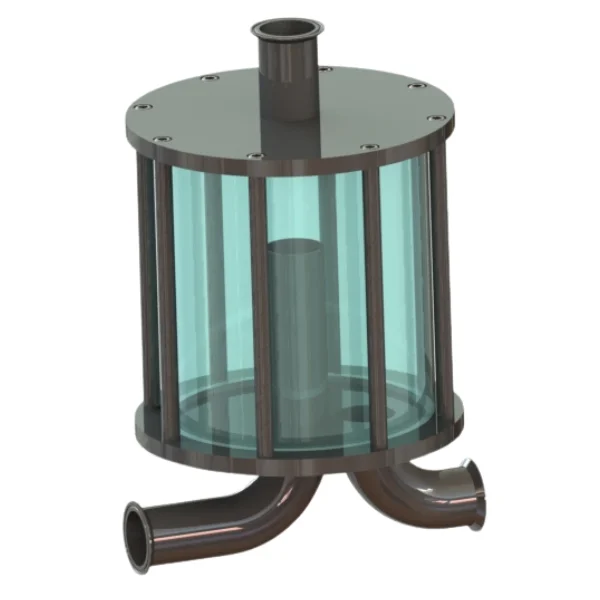

Hygienic Bubble Traps

An Iniflu Bubble Trap is a specialized component used in various fluid systems to eliminate air bubbles and provide a clear view of fluid flow. These traps are crucial in applications where air bubbles can cause inaccuracies, interruptions, or contamination.

Hygienic Bubble Traps

An Iniflu Bubble Trap is a specialized component used in various fluid systems to eliminate air bubbles and provide a clear view of fluid flow. These traps are crucial in applications where air bubbles can cause inaccuracies, interruptions, or contamination.

Applications

Observation of the interior of pressure vessels in the dairy, food, beverage, brewing, chemical, personal care, biotechnology, pharmaceutical, and other industries.

Available Parts and Materials

Trampa de burbujas Iniflu desglosada por piezas
ItemPart nameMaterial options
1Allen Bolts Stainless Steel 316L
Stainless Steel 304
2Tapper Stainless Steel 316L
Stainless Steel 304
3Gasket (max temp) Non Asbestos (200°C)
Exp Graphite (450°C)
Graph/Kevlar (450°C)
FKM (260°C)
PTFE (260°C)
EPDM (140°C)
4Protection Rods Stainless Steel 316L
Stainless Steel 304
5Sight Glass (max temp) DIN7080 Tempered Borosilicate (280°C)
Quartz, Min. 95% Fused Silica (1450°C)
DIN8902 Tempered Soda Lime (150°C)
6 Stainless Steel 316L
Stainless Steel 304
Carbon Steel w/ anti-corrosion coating

Hygienic Bubble Traps – Installation

The numbers in the following installation instructions correspond to the diagram above. After properly welding the base flange (5) to the vessel wall, assemble the gasket (3), sight glass (4), gasket (3), and cover flange (2) in that order.

Tighten the bolts (1) according to the torque values specified in the technical information table (always tighten bolts in diametrically opposed pairs).

Características de las partes de la trampa de burbujas Iniflu
